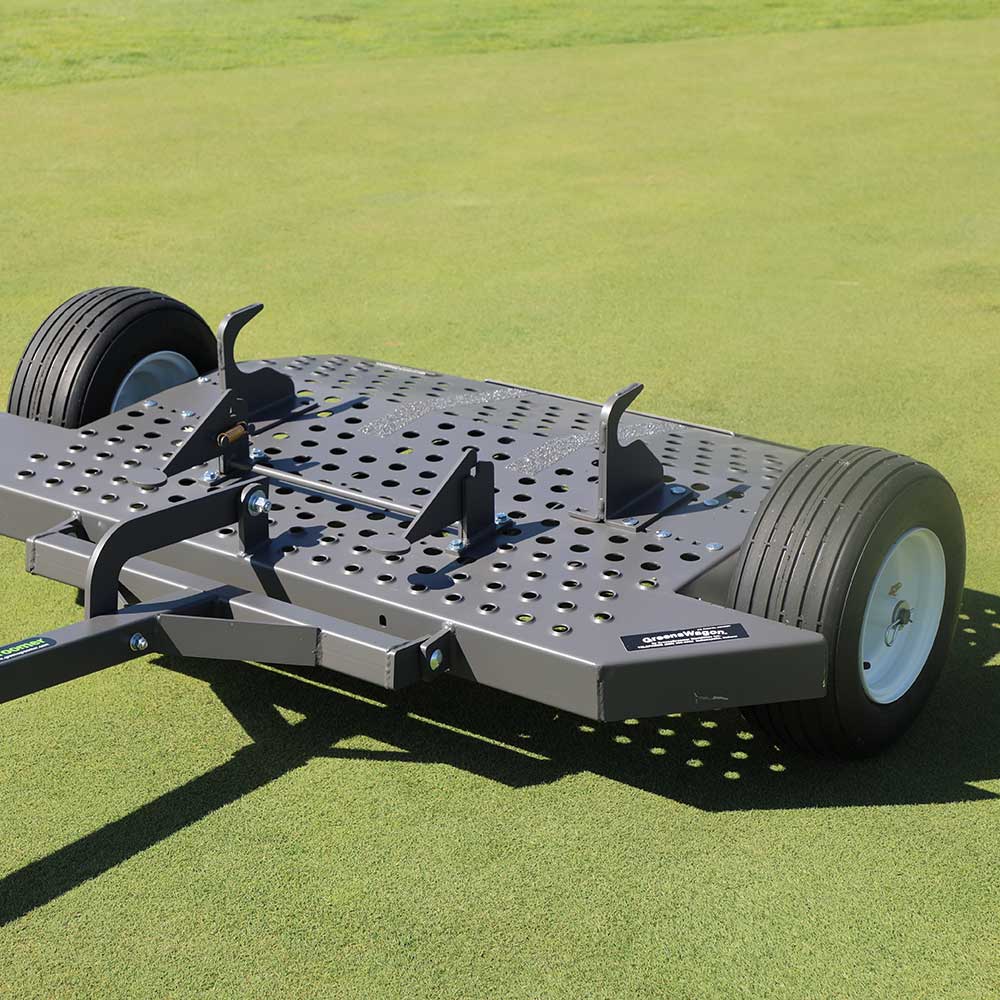

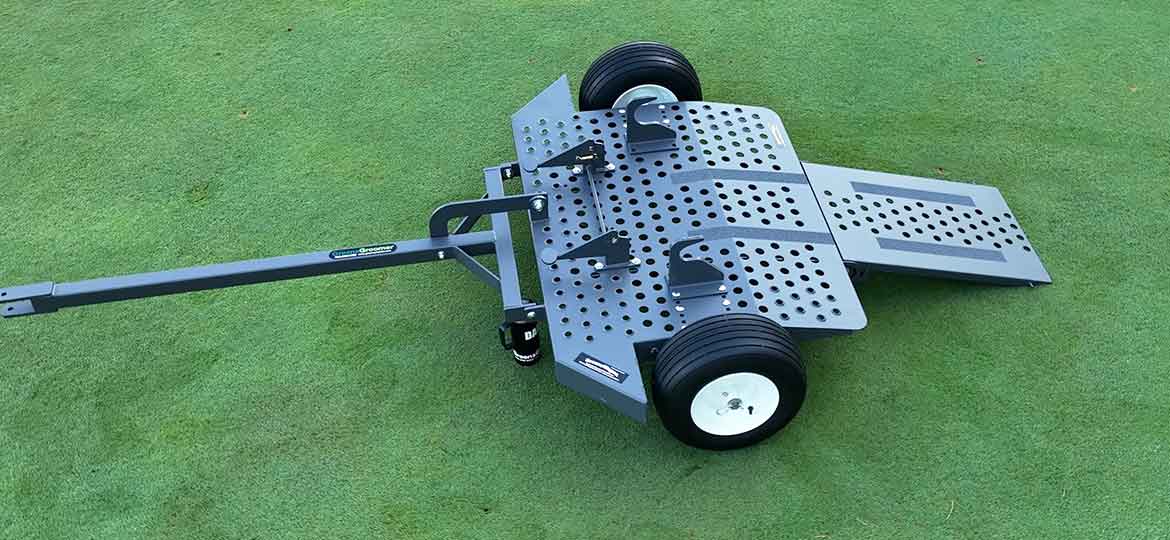

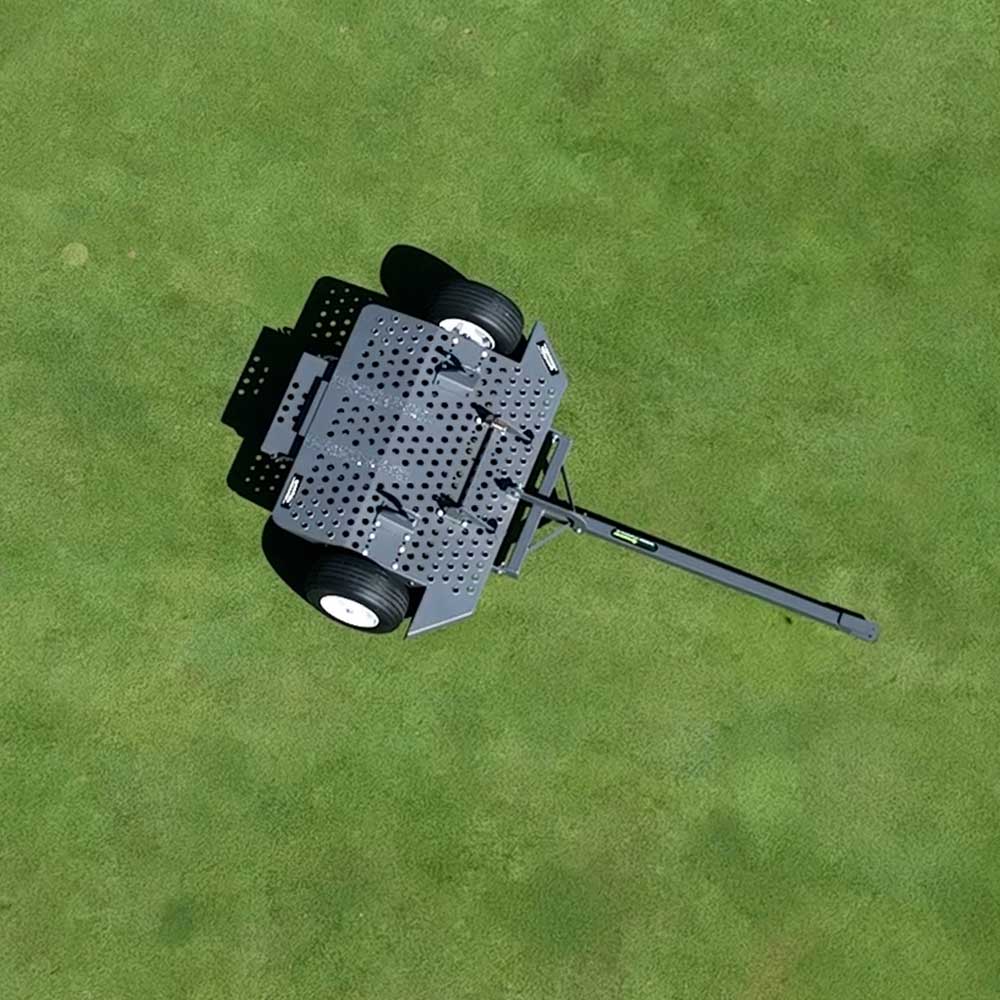

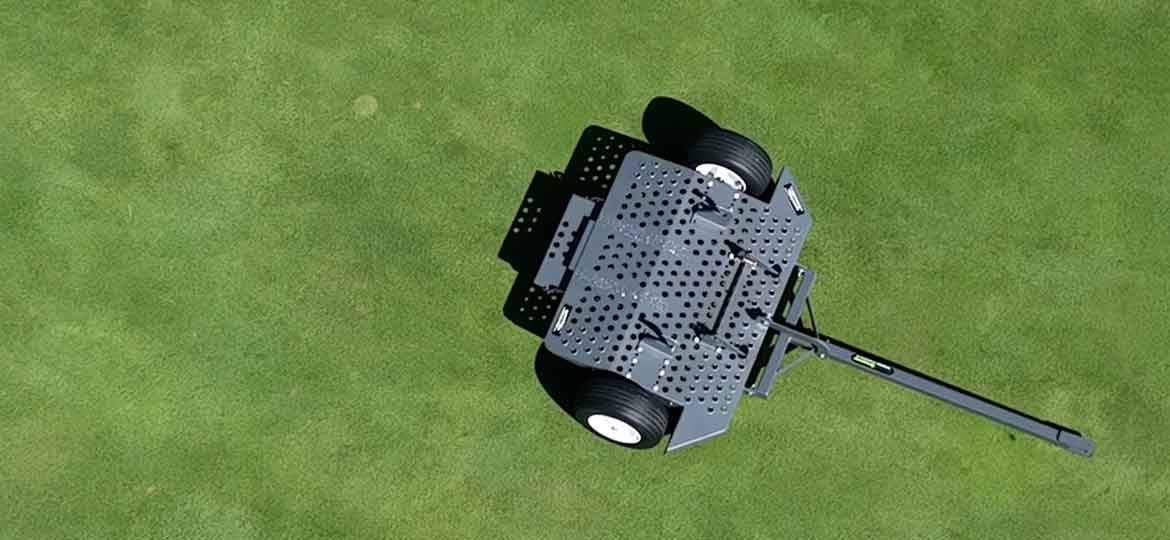

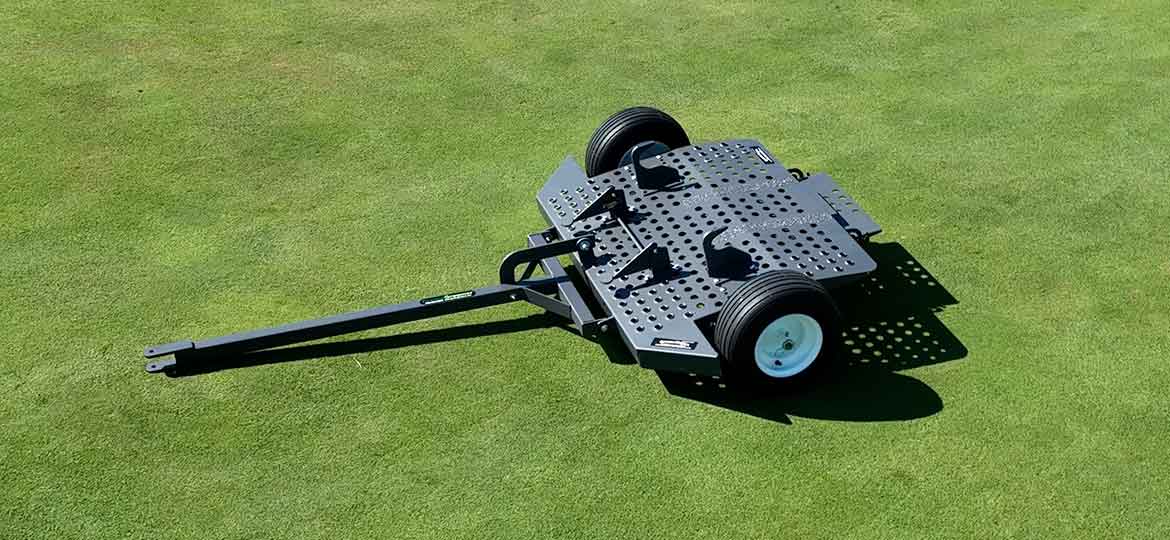

Easy transportation for your walk-behind mowers, without the price tag of OEM units. The GreensWagon adapts to the most common mowers from the Big Three and then some. With an extra wide stance, the GreensWagon provides a stable platform for transport.

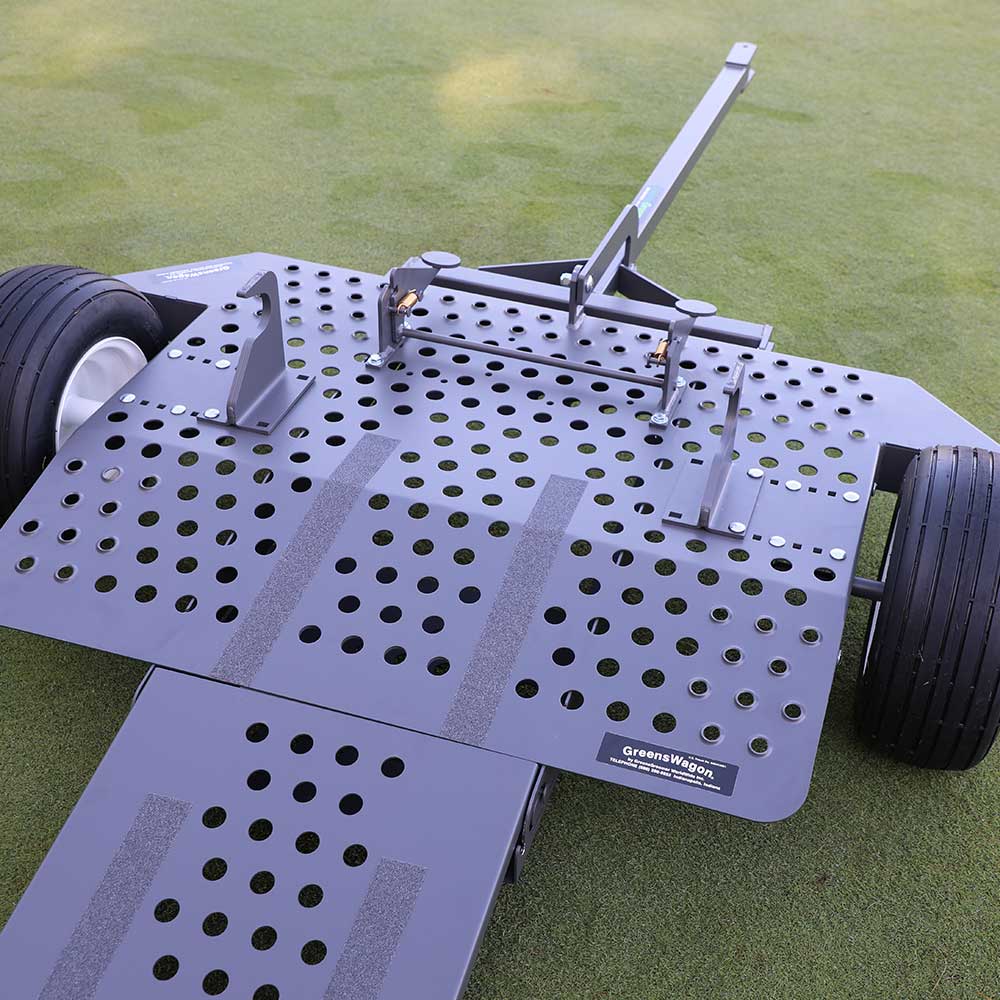

The heavy gauge steel construction and durable powder-coat finish will deliver many years of reliable service. The perforated deck makes for easy cleanup too. How can you go wrong with this combination?
The GreensWagon fits Jacobsen (518, 522, 526, TC 22), Toro (500, 800, 1000, 1600, Flex 18, 21), John Deere (180A, 220A, 180B/C, 220B/C, 260B/C), and PGM/Ransome 22.

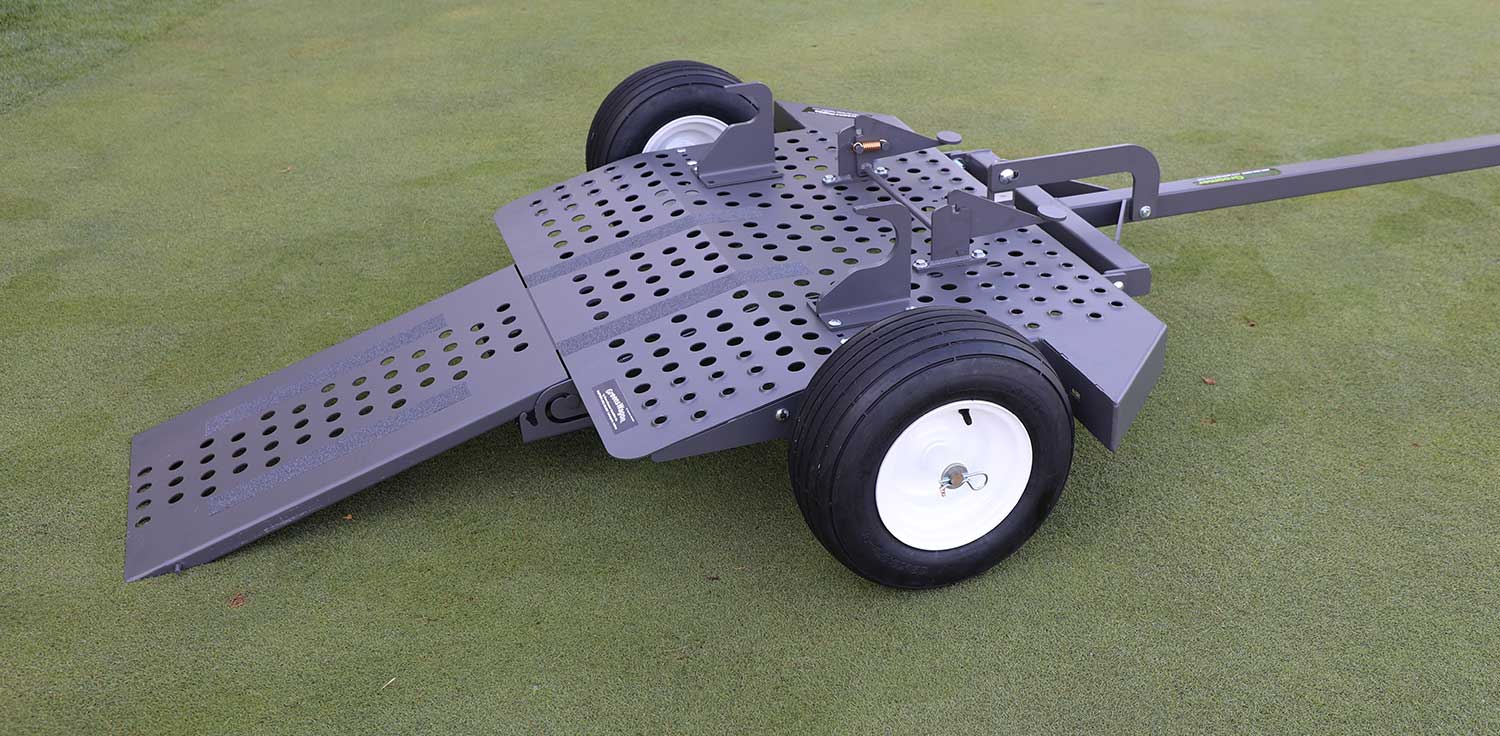

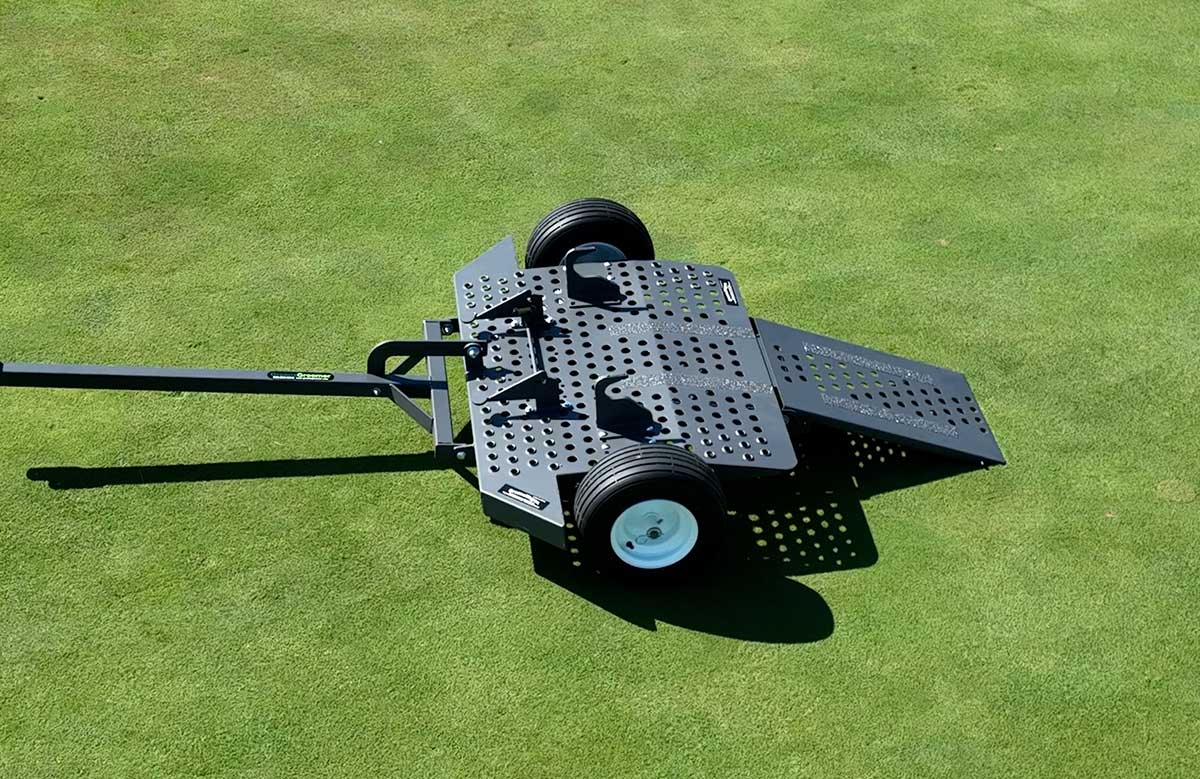

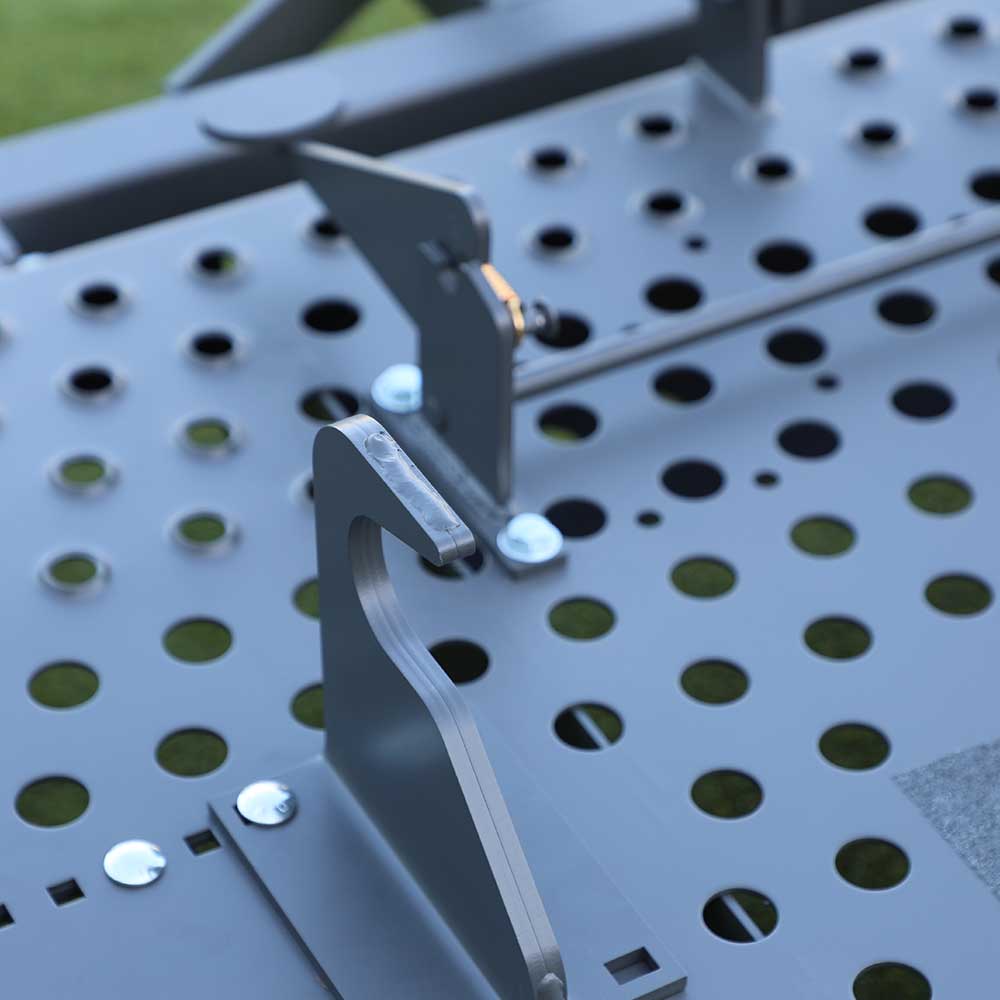

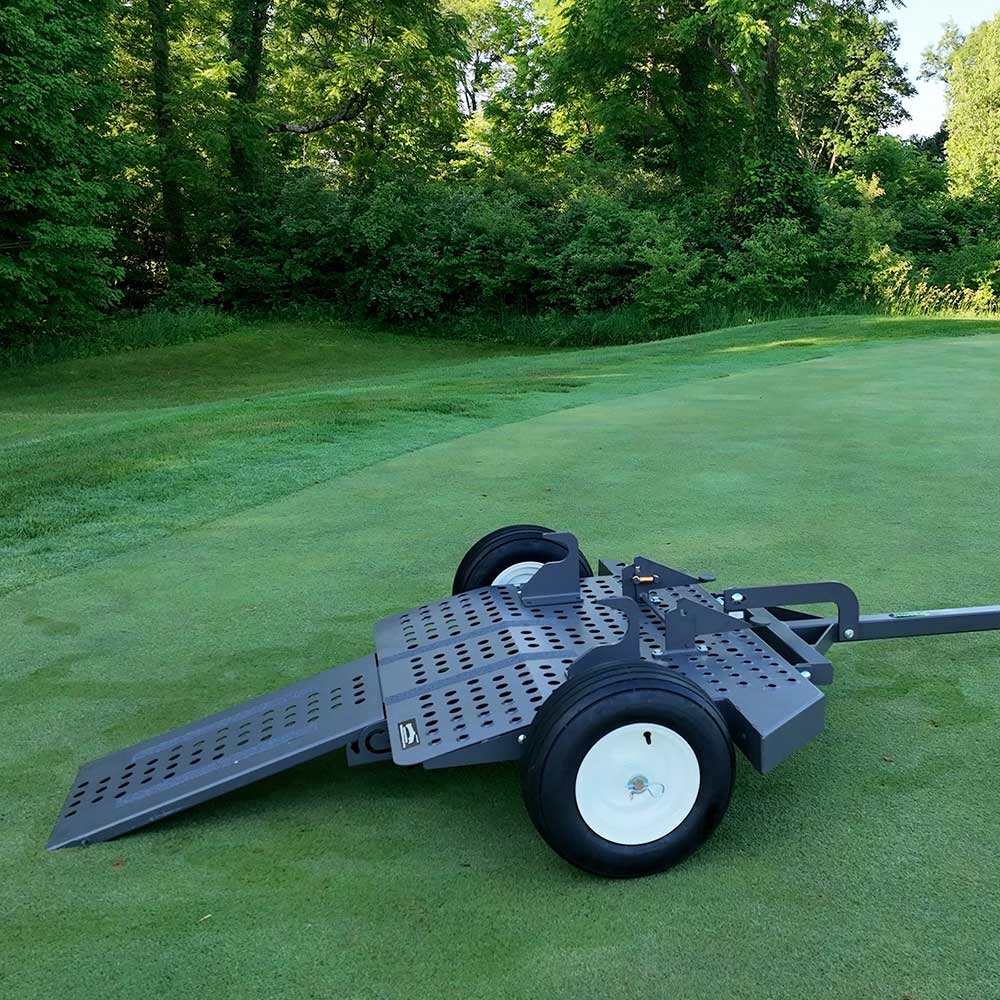

The GreensWagon comes with an easy, slide-out ramp. It takes just seconds to pull the ramp out, load your mower, engage the lock-down mechanism, and slide the ramp back in. You’re off to the next green while protecting the drum, height adjustment roller, and bedknives. You’ll be assured an accurate cut from the first green to the eighteenth green!

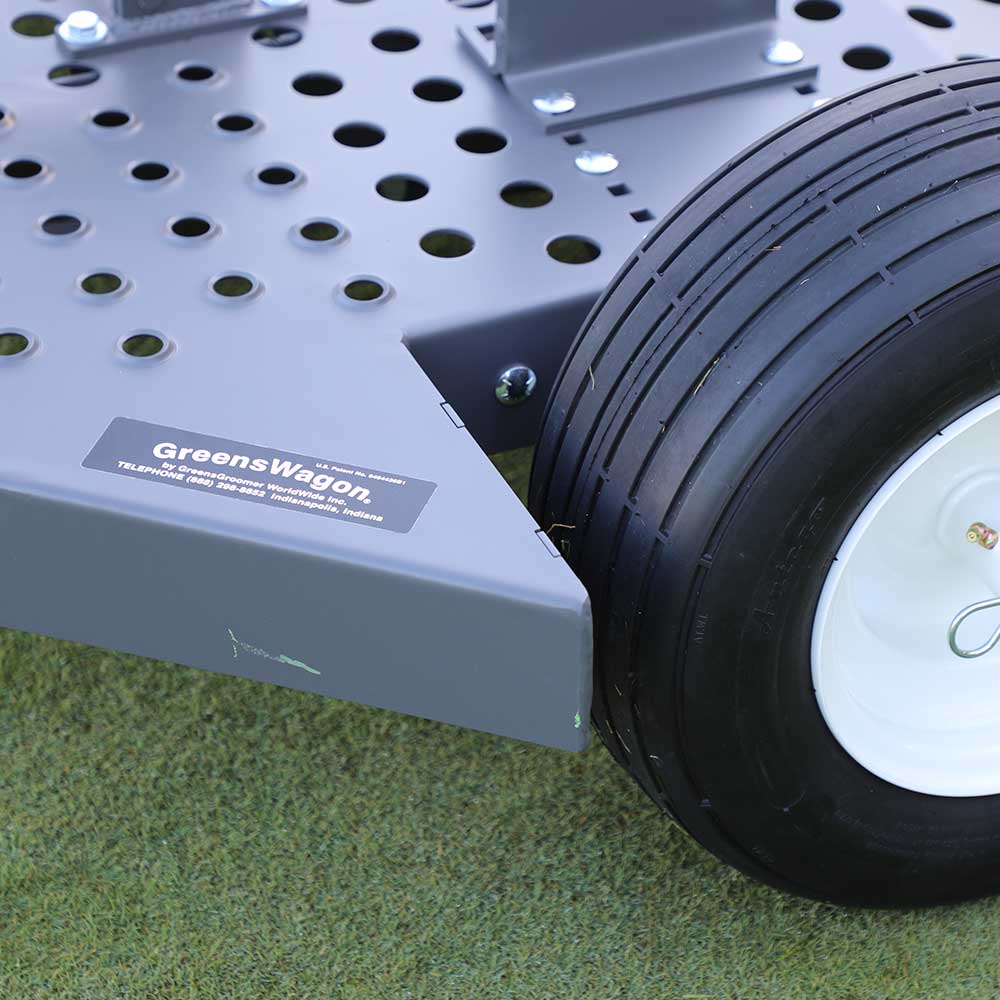

Standard on the GreensWagon are specially designed “wings”. These reinforced wheel housings protect the unit from damaging obstacles. As optional equipment, we produced heavy gauge fenders that further protect the unit and control spray.

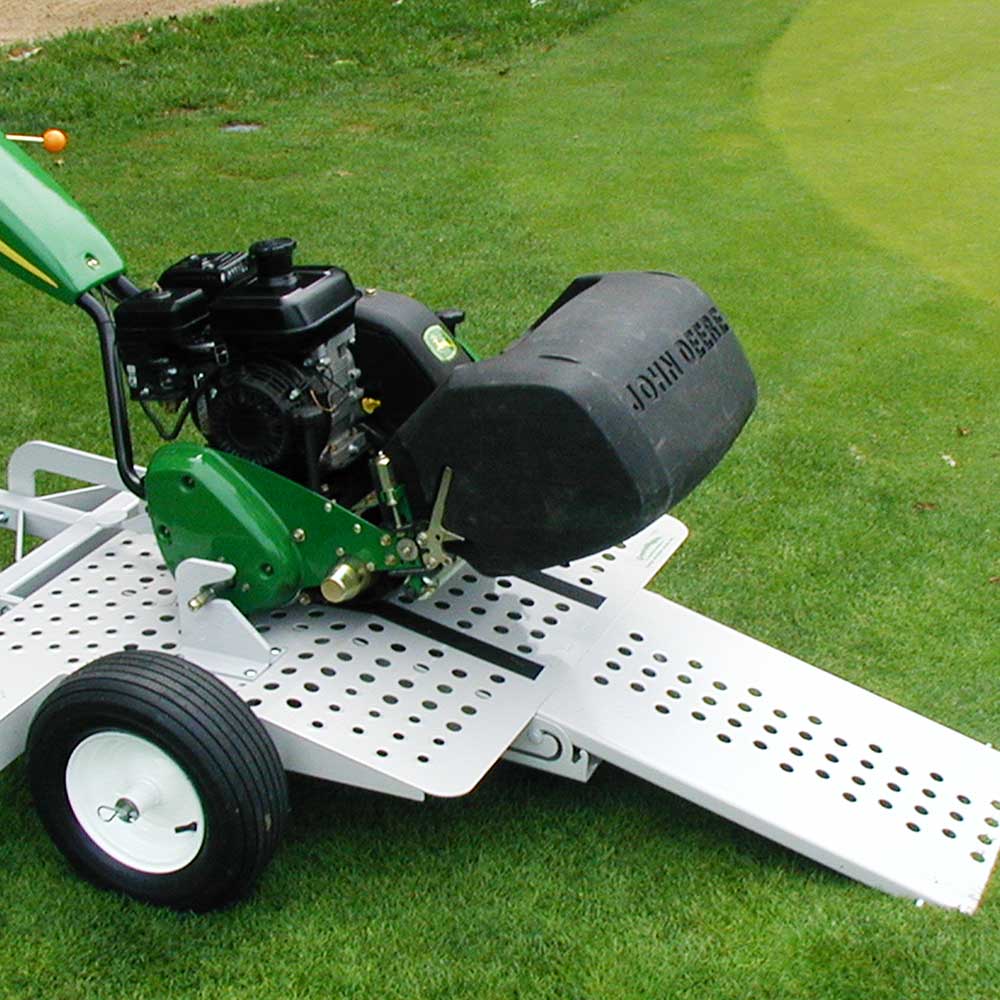

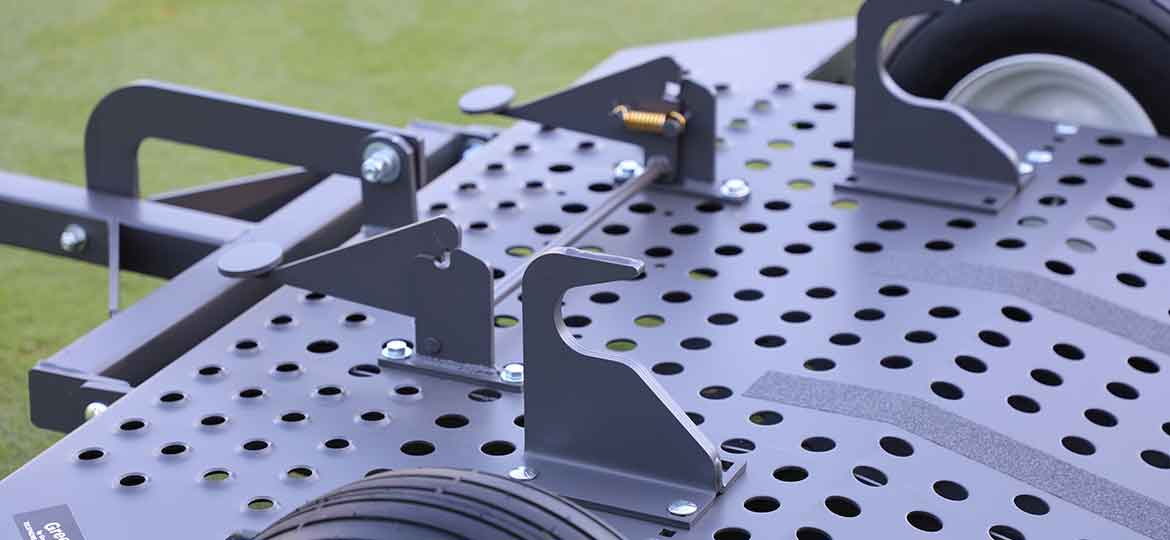

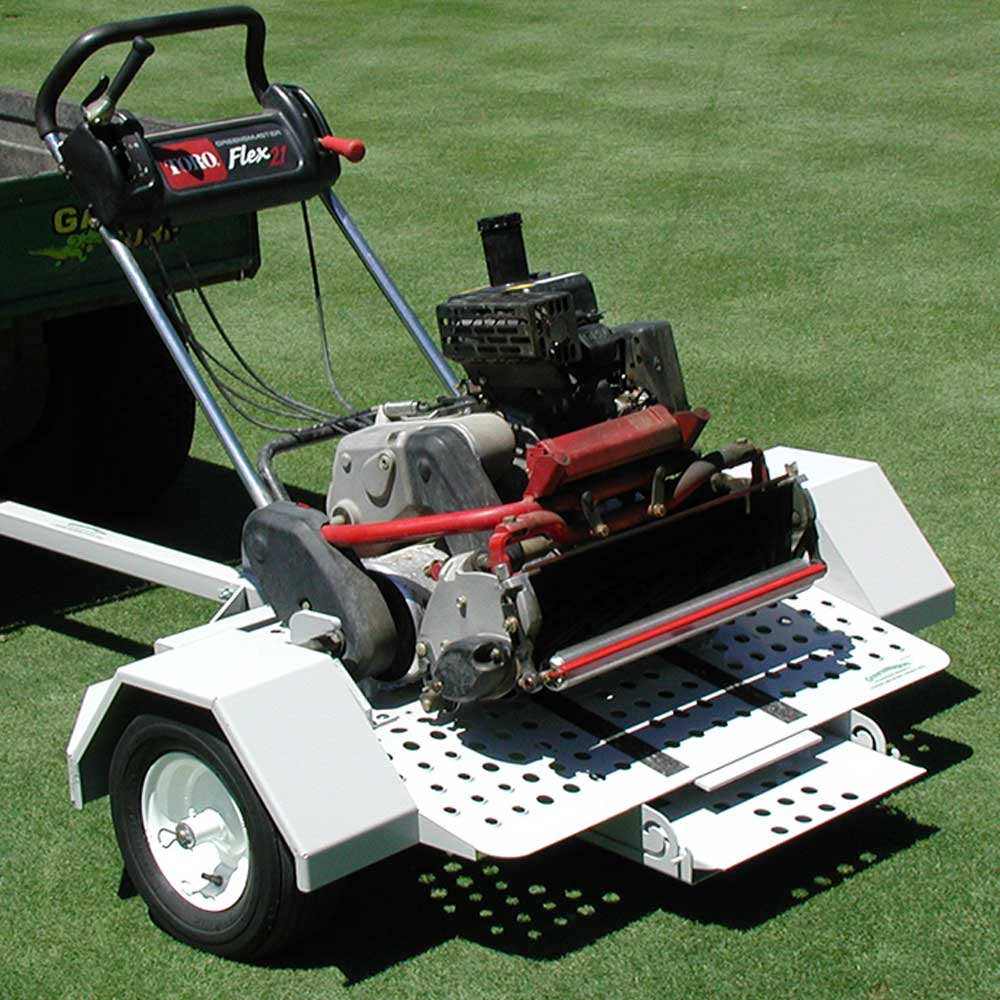

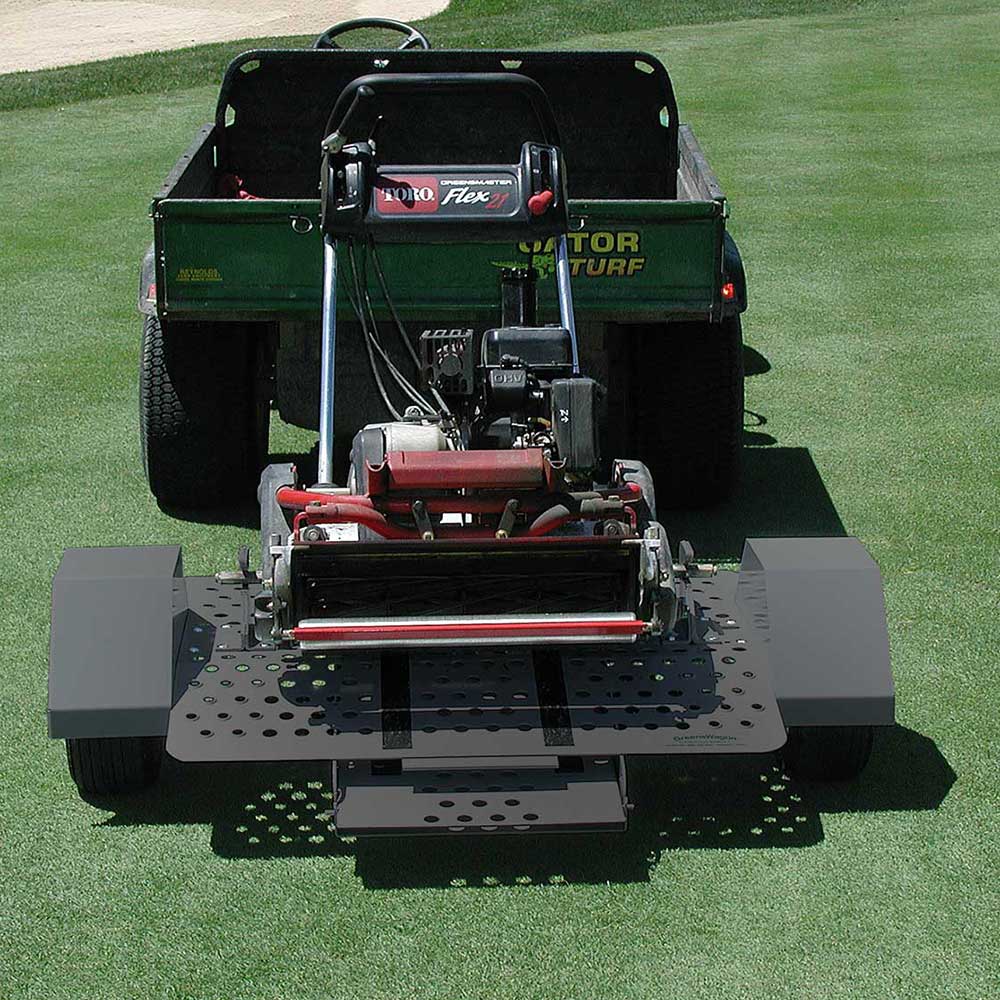

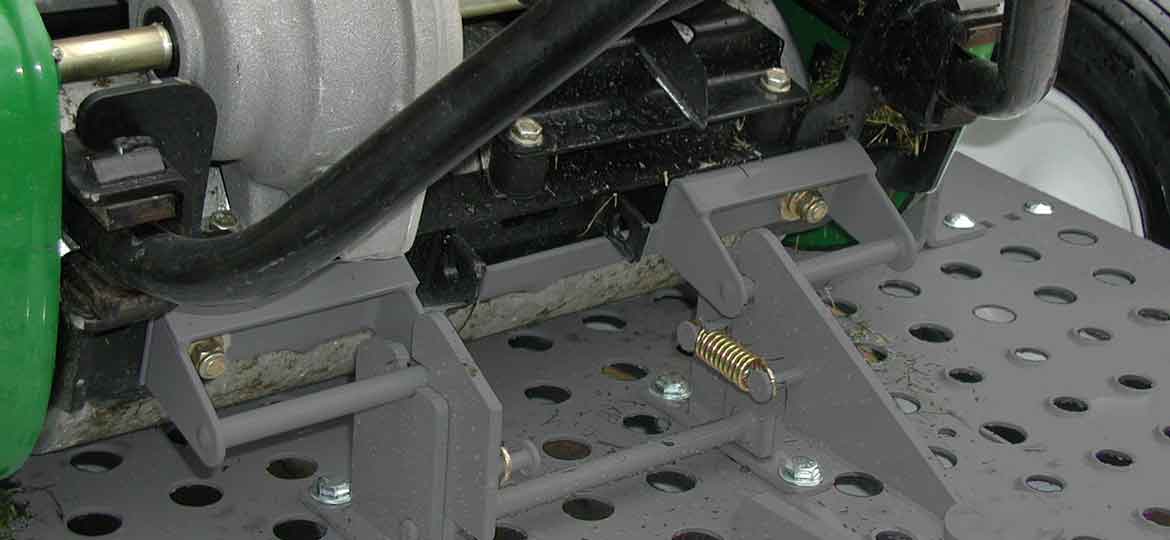

The GreensWagon® is the most mower friendly and practical way to transport walk behind greens mowers. Each mower locks up and off the deck of the GreensWagon. The drum, height adjustment roller, and bedknife are protected against damage and assures an accurate cut from the 1st green to the 18th green.

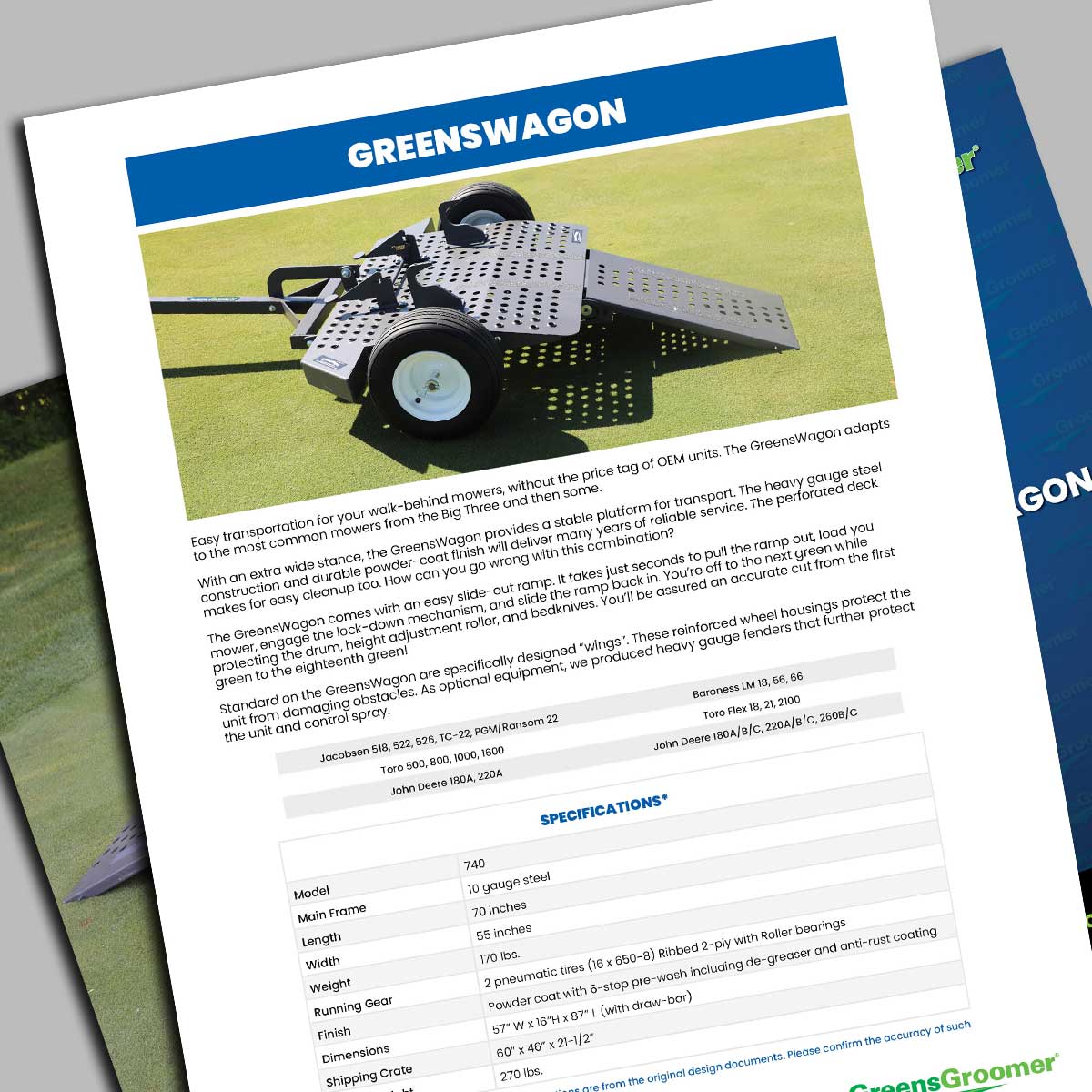

GreensWagon (740) Specifications. Download a PDF here
All measurements listed within the specifications are from the original design documents. Please confirm the accuracy of such measurements for your own benefit.
|Main Frame||10 gauge steel|
|Draw Bar||One piece 2” square tube|
|Running Gear||2 pneumatic tires (16 x 650-8) Ribbed 2-ply with Roller Bearings|
|Finish||Powder coat with 6-step pre-wash including de-greaser and anti-rust coating|
|Dimensions||57” W x 16”H x 87” L (with draw-bar)|
|Shipping Crate||60” x 46” x 21-1/2”|
|Crated Weight||270 lbs.|

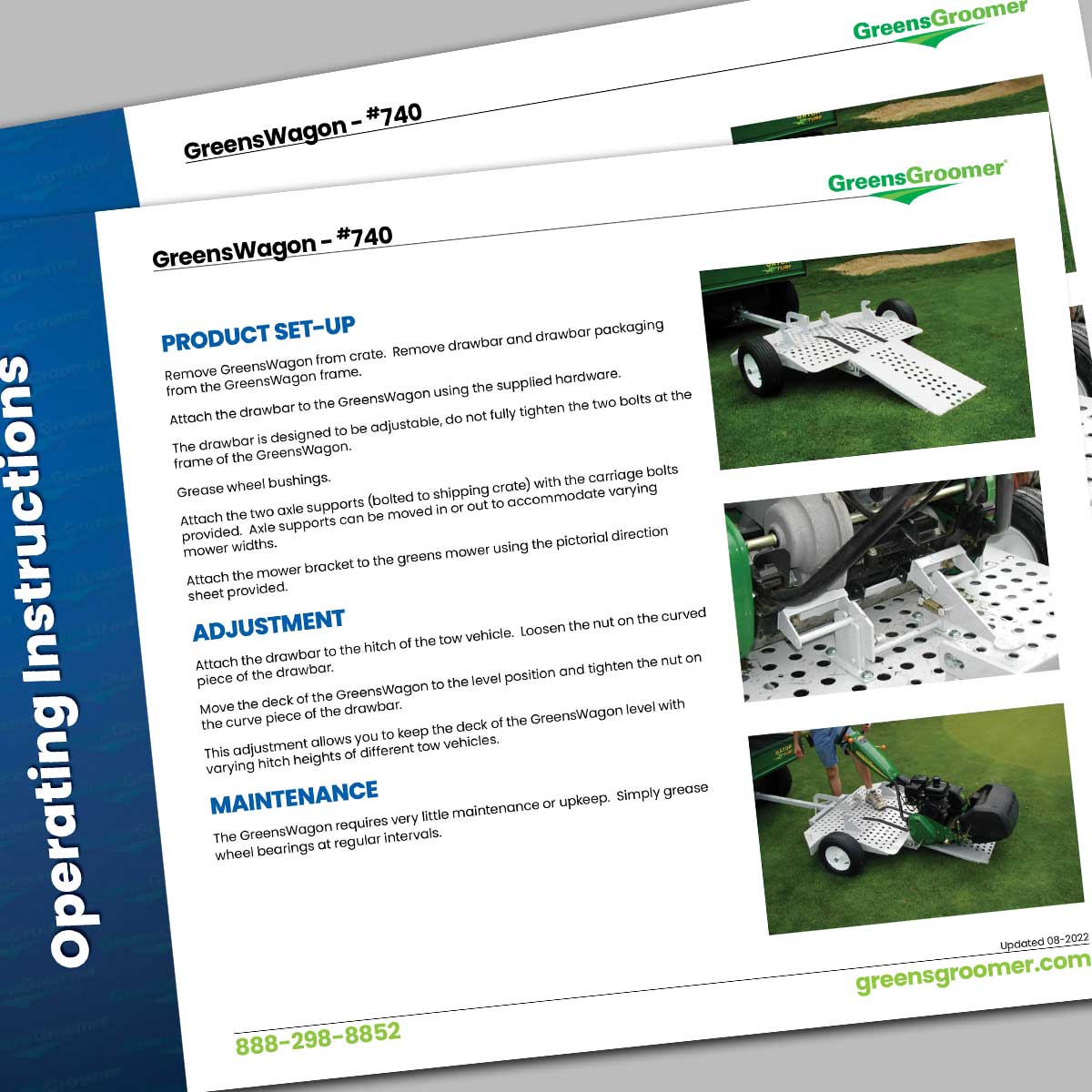

GreensWagon (740) Operating Instructions. Download a PDF here
|Set-Up||Remove GreensWagon from crate. Remove draw-bar and draw-bar packaging from the GreensWagon frame. Attach the draw-bar to the GreensWagon using the supplied hardware. The draw-bar is designed to be adjustable, do not fully tighten the two bolts at the frame of the GreensWagon. Grease wheel bushings. Attach the two axle supports (bolted to shipping crate) with the carriage bolts provided. Axle supports can be moved in or out to accommodate varying mower widths. Attach the mower bracket to the greens mower using the pictorial direction sheet provided.|
|Adjustment||Attach the draw-bar to the hitch of the tow vehicle. Loosen the nut on the curved piece of the draw-bar Move the deck of the GreensWagon to the level position and tighten the nut on the curve piece of the draw-bar This adjustment allows you to keep the deck of the GreensWagon level with varying hitch heights of different tow vehicles.|
|Maintenance||The GreensWagon requires very little maintenance or upkeep. Simply grease wheel bearings at regular intervals.|
GreensWagon (740) Product Video

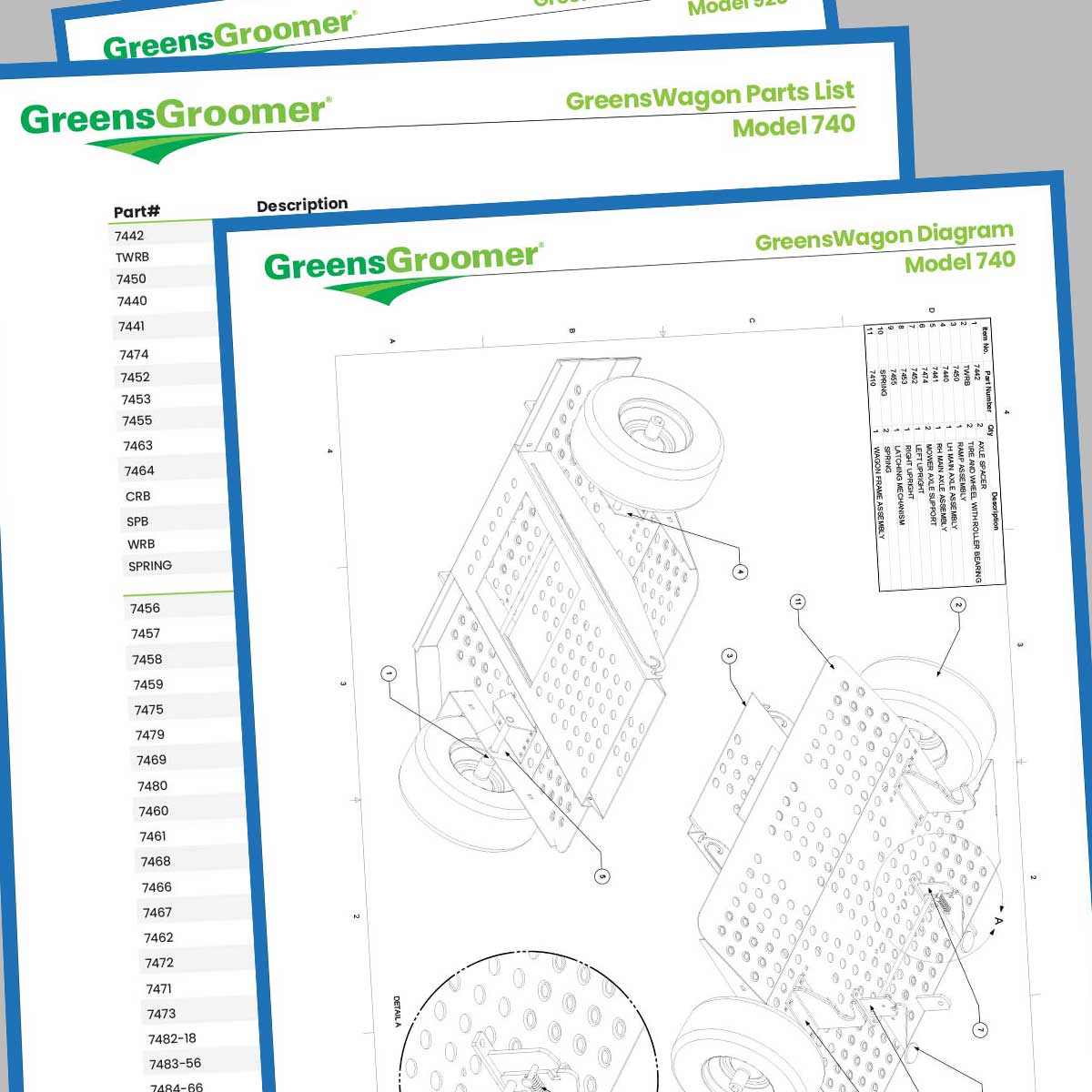

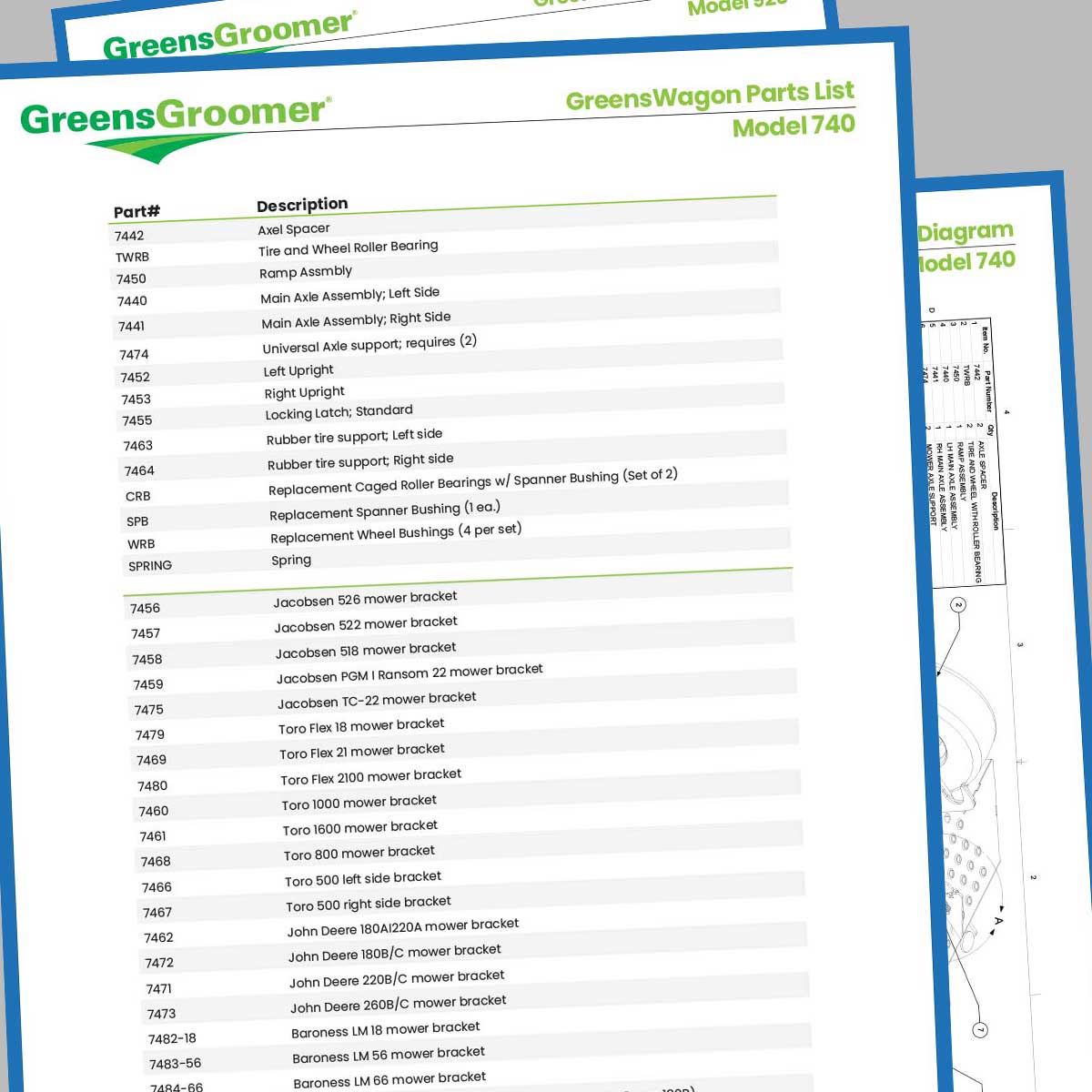

GreensGroomer has developed a range of different parts that enable the GreensWagon to fit the most popular walk-behind mowers.
When ordering the GreensWagon, make sure to specify what mower bracket is required.
The GreensWagon accommodates a wide range of popular models.
Jacobsen - 518, 522, 526, TC 22
Toro - 500, 800, 1000, 1600, Flex 18, 21
John Deere -180A, 220A
John Deere - 180B/C, 220B/C, 260B/C PGM/Ransome 22
